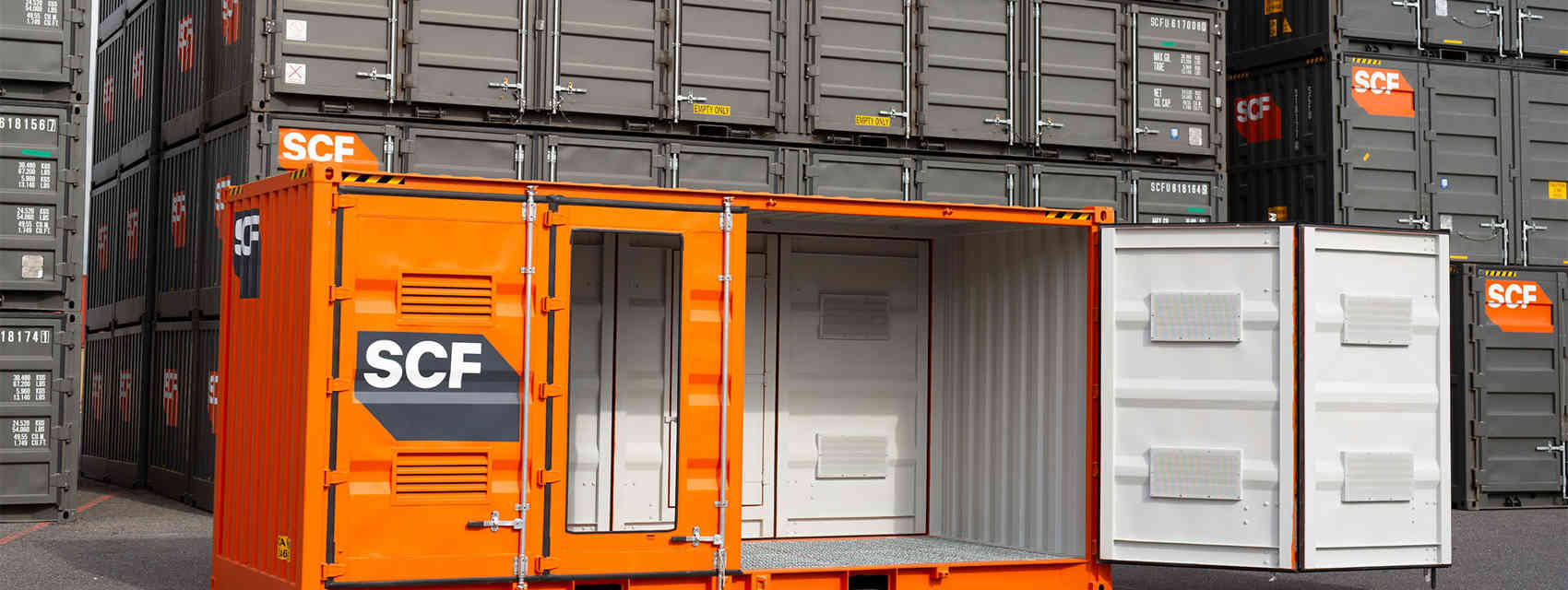

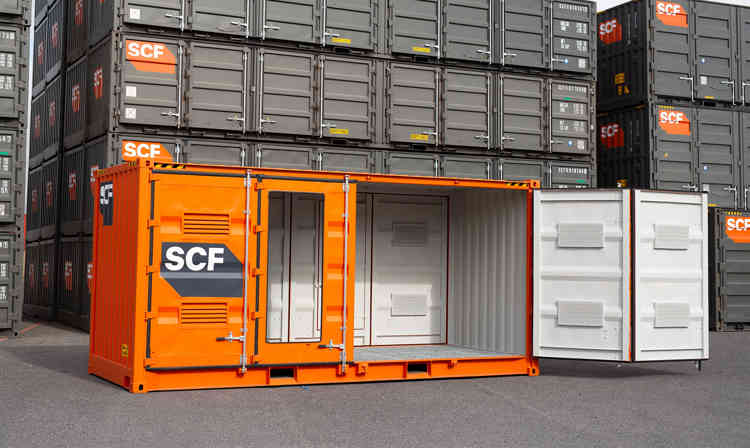

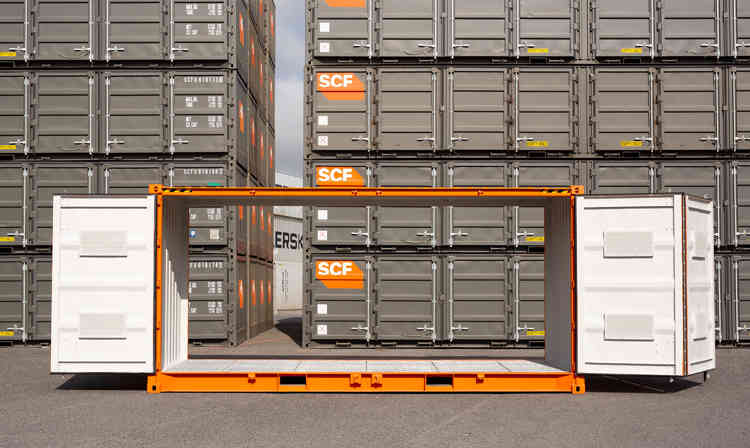

SCF 20ft Double Side Door Dangerous Goods Container | Open Doors

SCF 20ft Double Side Door Dangerous Goods Container | Galvanised Flooring

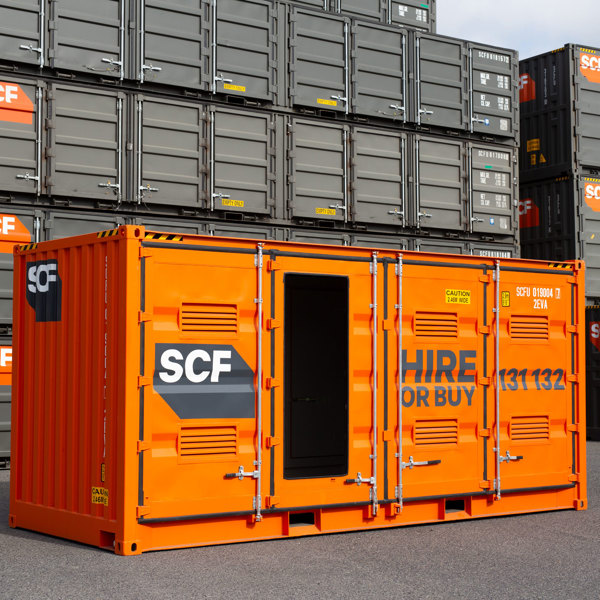

20ft Dangerous Goods Double Side Door Container

SCF’s 20ft Dangerous Goods Double Side Door container is the most flexible storage solution for dangerous goods, with access available from both sides. Safely store your chemicals, liquids or powders and get the peace of mind that workplace compliance provides.

Key Features

Flexible storage for chemical classes 3, 4.1, 4.3, 5.1, 6.1 and 8 (subject to MSDS compliance)
Bunded to contain spillages

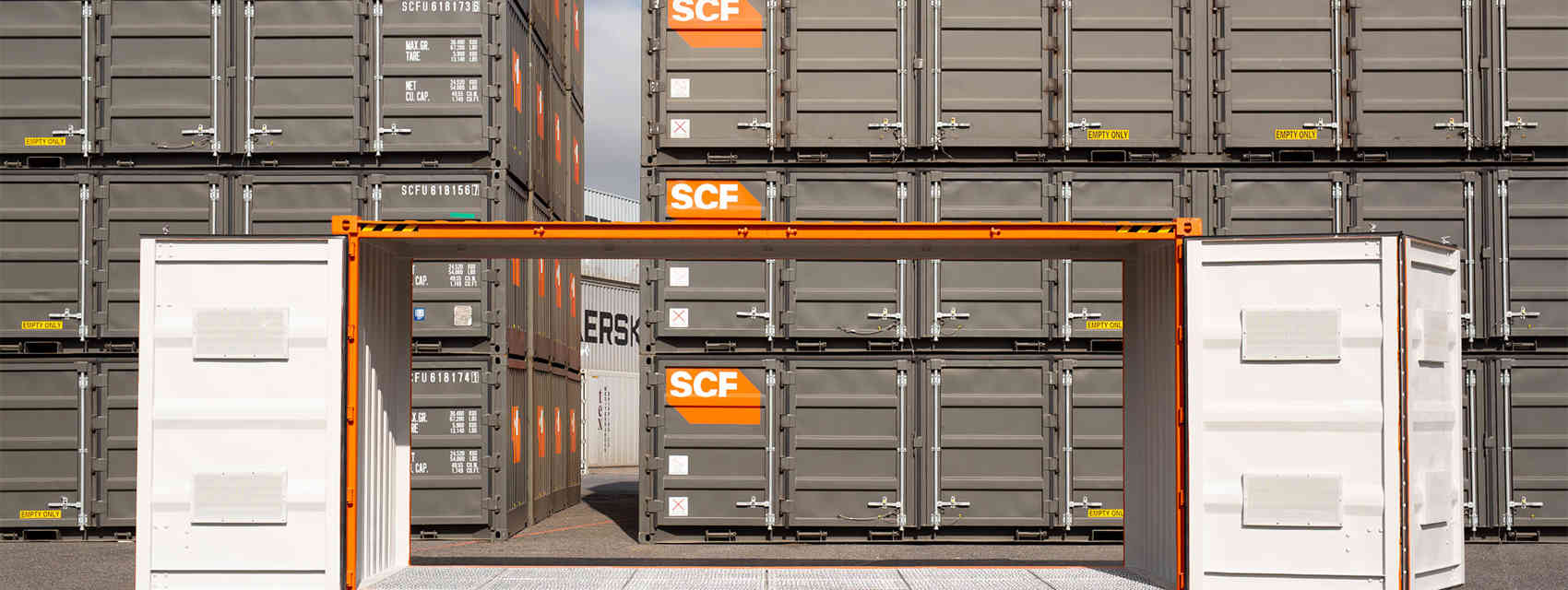

Full double side opening access
Multiple top and bottom vents for air circulation

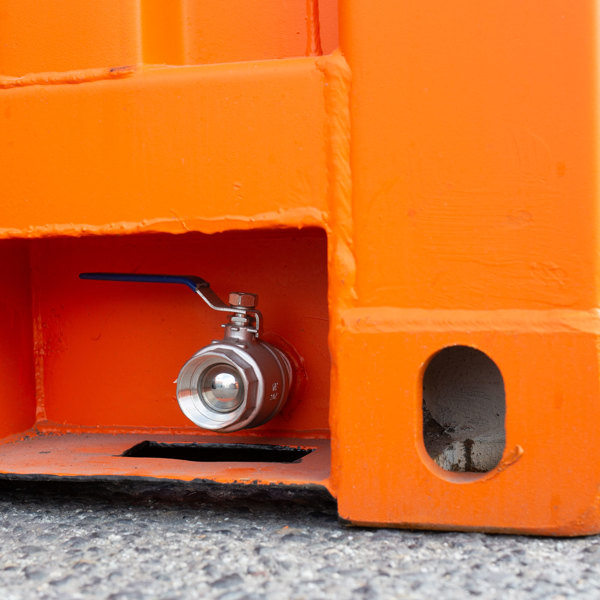

316L safety drain valve

Download brochure Get a quote

Product Details

SCF’s Double Side Door Dangerous Goods container is specifically designed for the transport and storage of dangerous goods.

It provides a bunded transport solution for your hazardous and EPA prescribed dangerous goods. The design ensures optimum compliance and safety to transport and store your hazardous goods in purpose-built application from end-to-end.

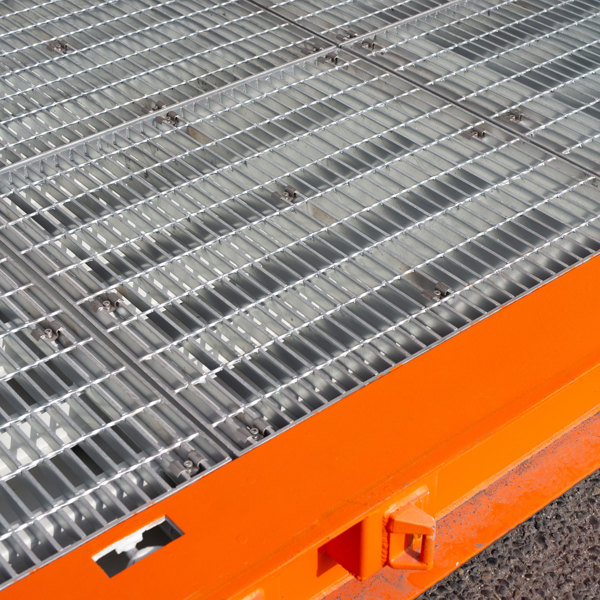

All SCF Dangerous Goods containers are designed to comply with the applicable Australian Standard and come with galvanised steel flooring, bunding to contain spills, raised cross-members to simplify the clean-up of spills and an emergency exit to ensure user safety.

Other key safety features include ventilation grills at the top and bottom of the side walls, and a safety drain valve.

Upon delivery, each customer will receive an Independent Certificate of Compliance.

Options

Need something custom built? Call to discuss your requirements

20ft Dangerous Goods Double Side Door Dimensions and Weight

Specifications may vary

Internal

Length (mm) 5,948

Width (mm) 2,248

Height (mm) 2,586

External

Length (mm) 6,058

Width (mm) 2,462

Height (mm) 2,896

Weight

Tare (kg) 4,600

Payload (kg) 16,000

MGW (kg) 20,600

20ft Dangerous Goods Double Side Door - line drawing - SCF

How is this container delivered?

Tilt Tray

Tilt tray delivers a container off the back of the truck. Similar to a tow truck, the tray is mechanically lowered at an angle, and the container is slid off, with the truck moving forward at slow speed. This is the most common delivery method used for containers. Tilt trays are not suitable for sites with overhead power lines as the container height increases significantly when tilted.

Hiab Crane

Hiab cranes lift containers from a mechanism located behind the truck's cabin. This is used when there is limited space for a side loader or tilt tray. Using a crane means the container is easily positioned at an angle or up on a raised area. It can also be used to place containers over a fence or other obstacles.

Side Loader

Side loaders are used to transport our 20 foot and 40 foot shipping containers. This is the best delivery method for containers at sites that have limited space either in front or behind the area where the container is to be positioned. The container is unloaded between the two outrigger feet of the side loader, approximately half a metre from the side of the truck.
