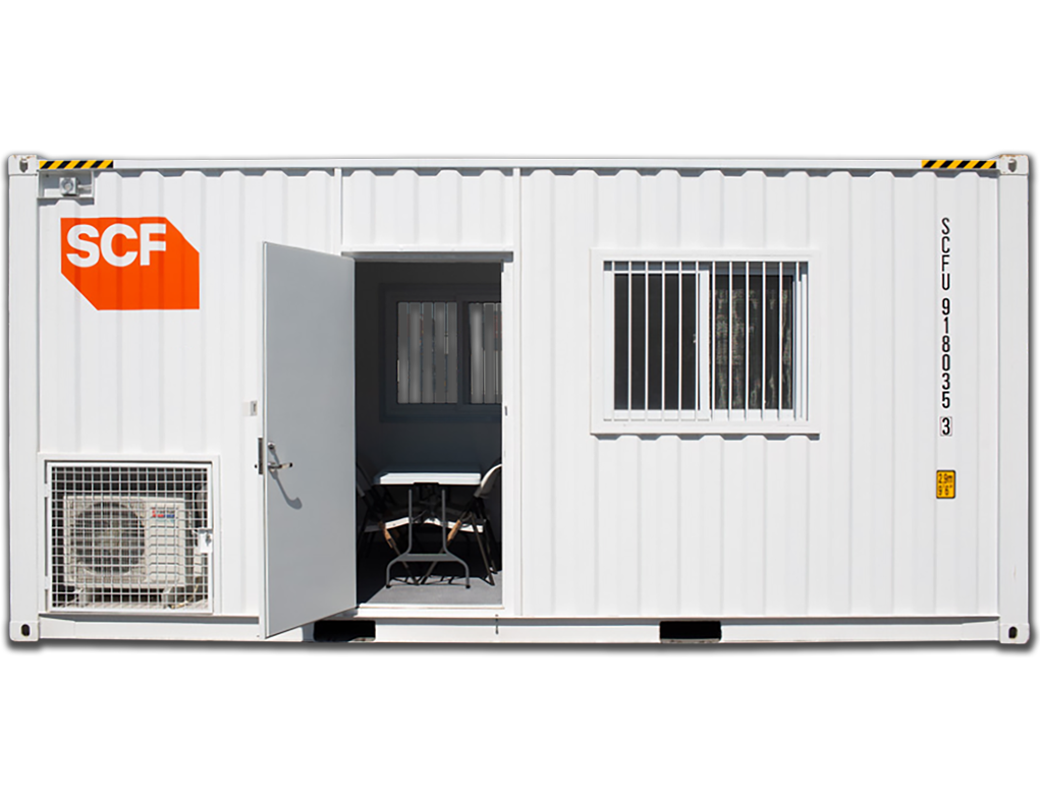

20ft Site Office

20ft Site Office

SCF site offices are the ideal unit to successfully manage your project from – insulated, air conditioned and configurable to your needs.

Key Features

  • Rockwool insulation
  • Split system reverse cycle air conditioning externally recessed (within 20ft footprint)
  • Hard wired smoke detector with battery backup
  • Steel PA doors with lockbox
  • Windows with flyscreen and security mesh

Product Details

Built with the same high-quality materials as our standard containers and portable buildings, the SCF site office will provide the optimum working space for you and your team.

SCF Site Offices come with superior Rockwool insulation so you can make important decisions in peace and comfort. A split system reverse cycle air conditioner ensures temperature is steady in hot and cold environments too.

All units are built with a strong focus on safety and security including internal and external lighting and windows with fly screens and steel shutters. The units are construction compliant with all Australian standards and the National Construction Code 2013.

Depending on your requirements, a range of internal layouts can also be arranged. Choices include a single office, setups for a team or a meeting room.

Our construction range thrives in harsh environments. Built from steel (including steel doors) with high quality fittings, our units are designed to last so you can get on with your work.

Options

Multiple fitout options including:

  • Single office

  • Team setup

  • Meeting room

  • Furniture for your team

  • Custom modifications based on your requirements

20ft Site Office Dimensions and Weight

Specifications may vary

Internal
Length (mm) 5,770
Width (mm) 2,150
Height (mm) 2,440
External
Length (mm) 6,058
Width (mm) 2,438
Height (mm) 2,896
Weight
Tare (kg) 3,000
Payload (kg) 7,000
MGW (kg) 10,000

How is this container delivered?

Site Offices are compact, meaning they won’t take up too much space on your worksite. Any cleared, level part of the worksite will fit a Site Office. How we access the site will depend on our method of delivery, but the following methods suit these units.

SCF Shipping Containers - Delivery Method - Tilt Tray

Tilt Tray

Tilt tray delivers a container off the back of the truck. Similar to a tow truck, the tray is mechanically lowered at an angle, and the container is slid off, with the truck moving forward at slow speed. This is the most common delivery method used for containers. Tilt trays are not suitable for sites with overhead power lines as the container height increases significantly when tilted.

SCF Shipping Containers - Delivery Method - Side Loader

Side Loader

Side loaders are used to transport our 20 foot and 40 foot shipping containers. This is the best delivery method for containers at sites that have limited space either in front or behind the area where the container is to be positioned. The container is unloaded between the two outrigger feet of the side loader, approximately half a metre from the side of the truck.

SCF Shipping Containers - Delivery Method - Hiab Crane

Hiab Crane

Hiab cranes lift containers from a mechanism located behind the truck's cabin. This is used for smaller shipping containers, usually up to 20 foot, or when there is limited space for a side loader or tilt tray. Using a crane means the container is easily positioned at an angle or up on a raised area. It can also be used to place containers over a fence or other obstacles.
