40ft Half Height Side Door Container 40ft Half Height Side Door Container

40ft Half Height Side Door Container

40ft Half Height Side Door Shipping Container

SCF's 40ft Half Height Side Door Shipping Container is suitable for all types of general transport, especially palletised and dense cargo. It is a popular choice for soft palletised cargo and beverages holding up to 20 pallets.

Key Features

  • Ladder lashing
  • Centre wall design with freight buffers
  • Large door opening height
  • Loaded top lift from 40′ corner castings

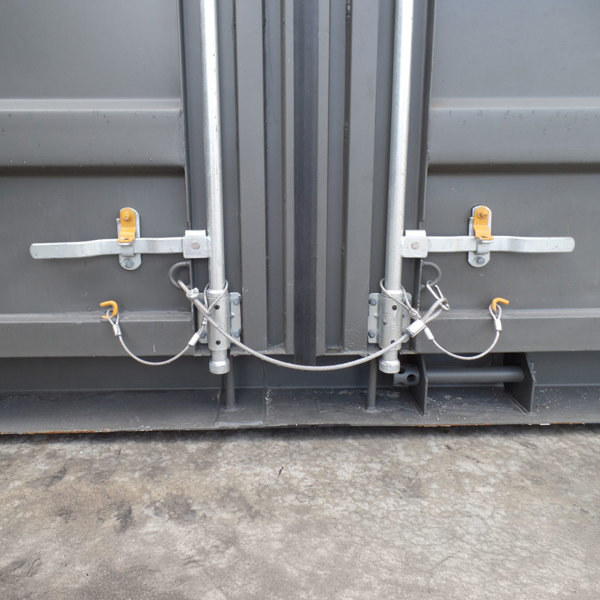

  • Door hardware designed to reduce racking and operation time
  • Steel flooring

Half Height Details

SCF's 40ft Half Height shipping container has a low tare weight for increased payload, maximising potential earnings with heavy loads. Shipping Containers can be double stacked on select rail routes creating space and cost efficiencies.

Steel side doors allow for fast HSE compliant operation, minimising labour time. It also provides increased protection on high risk damage areas to reduce ongoing costs and equipment downtime.

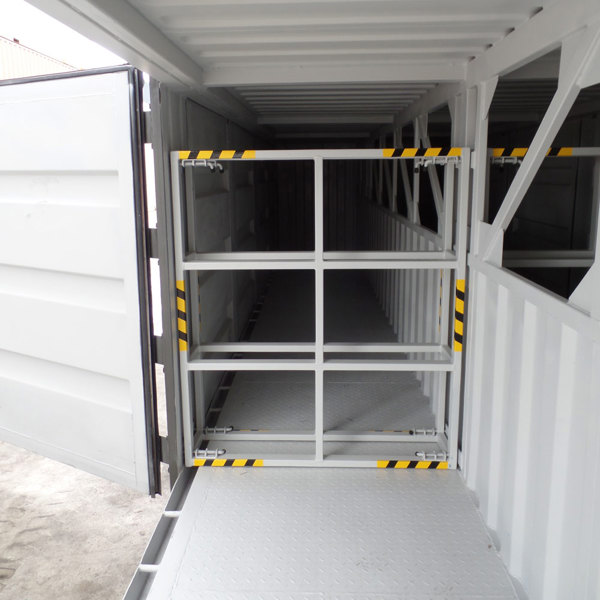

The Half Height shipping container has a range of features designed to increase flexibility and safety, including:

  • Large door opening width and height allows for loading efficiencies with larger pallets from both sides of the container
  • Maximum door swing with tiebacks for security
  • Load binder provisions to restrain cargo
  • Reinforced hinge system and door corrugation to reduce side impact damage

Half Height Options

  • Branding decals/paint

  • Lightweight options

40' Half Height Side Door Container Dimensions and Weight

Specifications may vary. Internal width per side of centre wall.

The cubic capacity of a 40ft half height side door container is 24.5m3.

40ft Half Height Container

Internal & external dimensions and weight of a 40ft half height container.

Internal
Length (mm) 12,086
Width (mm) 1,197
Height (mm) 1,695
External
Length (mm) 12,192
Width (mm) 2,500
Height (mm) 2,050
Weight
Tare (kg) 5,960
Payload (kg) 24,520
MGW (kg) 30,480

40ft Half Height Container

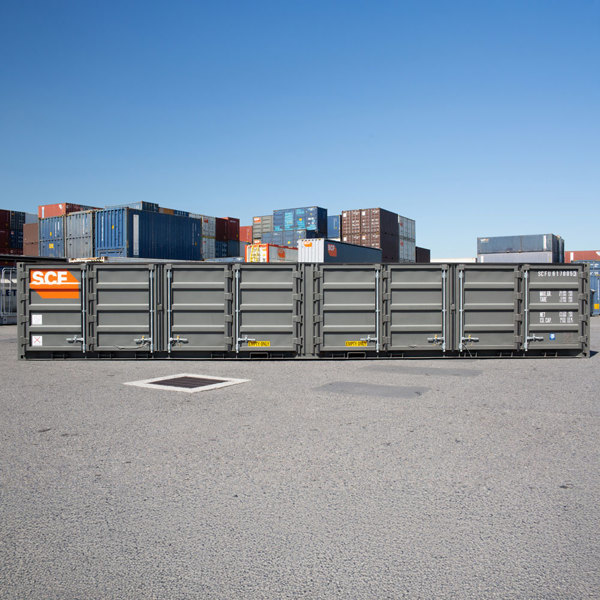

External dimensions of a 40ft Half Height Side Door Container.
